Carbon front triangle with integrated battery technology, paired with 6016 rear end with aggressive enduro/trail geometry and 150 mm rear wheel travel - Shimano STePS E8000/E7000 motors allow for short chain stays delivering agility.
Carbon front triangle with integrated battery technology, paired with 6016 rear end with aggressive enduro/trail geometry and 150 mm rear wheel travel - Shimano STePS E8000/E7000 motors allow for short chain stays delivering agility.
Merida

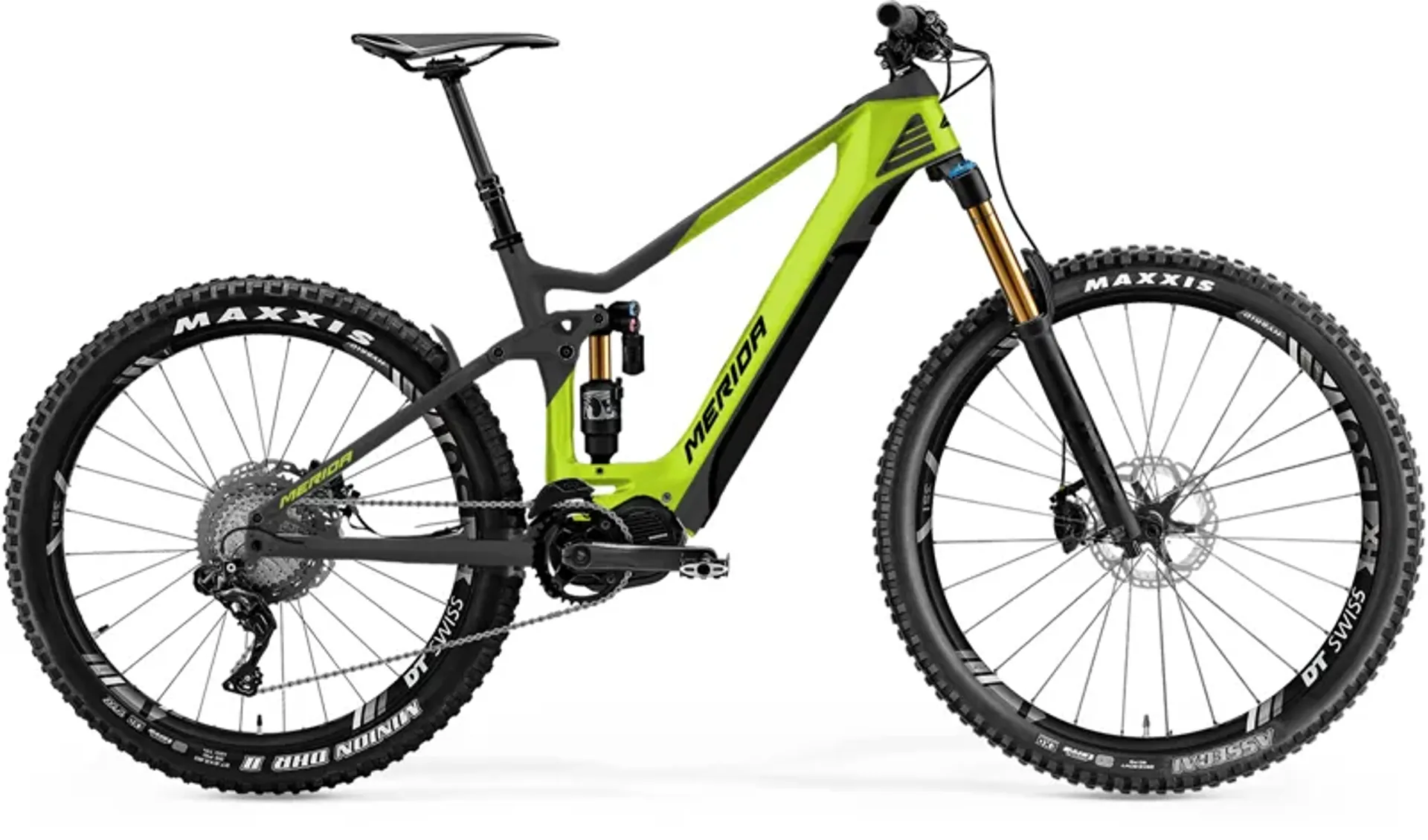

2020 Merida eOne-Sixty 9000 Electric Bike in Green

£7,000.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2020 Merida eOne-Sixty 9000 Electric Bike in Green

Season:2020

Brand:Merida

Code:K810

Carbon front triangle with integrated battery technology, paired with 6016 rear end with aggressive enduro/trail geometry and 150 mm rear wheel travel - Shimano STePS E8000/E7000 motors allow for short chain stays delivering agility. Internal cable guide for rattle free running. Full carbon motor bracket creates an integrated appearance of the motor into the frame as well as provides an extremely strong connection between frame and motor.

Features:
  • A two-component battery cover, which offers perfect protection for the internal battery. The softer (outer) layer reduces noises, seals the downtube perfectly and absorbs hits from trail debris easily, while the harder (inner) layer ensures that the battery does not get damaged and gives it the structural shape. All critical parts like the rubber strap and o-rings for perfect fitting can be replaced.
  • First introduced in our 2015 NINETY-SIX, the new version of the 'Internal Block' is incorporated directly in the frame and prevents the fork crown from hitting the carbon frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.
  • The bike features a perfectly positioned satellite on/off switch, at the head tube end of the top tube, and a well-protected satellite charging port, positioned in the main frame triangle, just above the motor.
  • To give the eONE-SIXTY precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.
  • Specifically located openings on the carbon eONE-SIXTY models near the head tube which work like a chimney and allow the warm air to dissipate to guarantee the optimum operating temperature of the internal battery. The 'Thermo Gate' enables the battery to perform at its best, in any condition.
  • Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles of up to 0.75l to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.
  • ‘Boost’ standard front & rear. The extra 6 mm rear hub and 10 mm front hub spacing in comparison with conventional hubs brings the width up to 148 mm / 110 mm and gives the eONE-SIXTY wheels noticeably more stiffness and strength.
Technical Information
  • CHAINWHEEL
    Shimano CRE80-12-B34 teeth Shimano FC-M8050
  • FRAME SIZE
    M, L, XL
  • FRAME
    eONE-SIXTY CFA material: carbon 150mm suspension travel 29/27.5" wheelsize 148x12mm axle standard intube max. 504 Wh
  • FORK
    FOX 36 Factory E-Bike+Air 160mm suspension travel Tapered 51mm fork offset
  • SHOCK
    FOX Factory Float DPX2
  • WHEELSET
    DT Swiss Spline HX1501 ONE 30 boost110x15mm width front hub 148x12mm width rear hub 30mm inner width Centerlock microspline material: aluminium Tubeless ready (tubeless tape and valves included)
  • HUBS
    MERIDA COMP TR
  • TYRES
    Maxxis Assegai / Maxxis DHR II
  • SHIFTERS
    Shimano SL -MT800-IL / Shimano XT 12
  • REAR DERAILLEUR
    Shimano XT RDM8100 Shadow+
  • CRANK SIZE
    Shimano FC-M8050165 mm all sizes hollow
  • CASSETTE
    Shimano M810010-51 teeth 12 speed
  • BRAKES
    Shimano XT
  • ROTORS
    Shimano RT-MT900 / Shimano RT-EM910
  • BOTTOM BRACKET
    included
  • CHAIN
    CNM8100
  • HEADSET
    MERIDA 1901
  • HANDLEBAR
    MERIDA Expert eTR material: aluminium 780mm width 20mm rise
  • STEM LENGTH
    MERIDA Expert eTR material: aluminium 35mm diameter 0° stem angle 40 mm all sizes
  • STEM SIZE
    40 mm all sizes
  • SADDLE
    MERIDA Expert CCV-mount incl. MERIDA minitool
  • SEAT POST
    MERIDA EXPERT TR30.9mm diameter 0mm setback XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost
  • SEAT CLAMP
    MERIDA Expert clamp
  • GRIP
    MERIDA Expert EC
  • PEDAL
    VPVPE-537
  • MUDGUARD
    C093-02F + C093-02R
  • LIGHTS
    CG-119PG-BLACK(1) / CG-404RG-BLK
  • BOTTLE CAGE
    MERIDA TEAM
  • DRIVE UNIT
    Shimano E800070Nm
  • BATTERY
    Shimano E8035504Wh
  • DISPLAY
    Shimano SC-E8000
  • SPEED SENSOR
    Shimano SM-DUE11
  • WEIGHT
    22.2 kgweighed at frame size M without pedals
