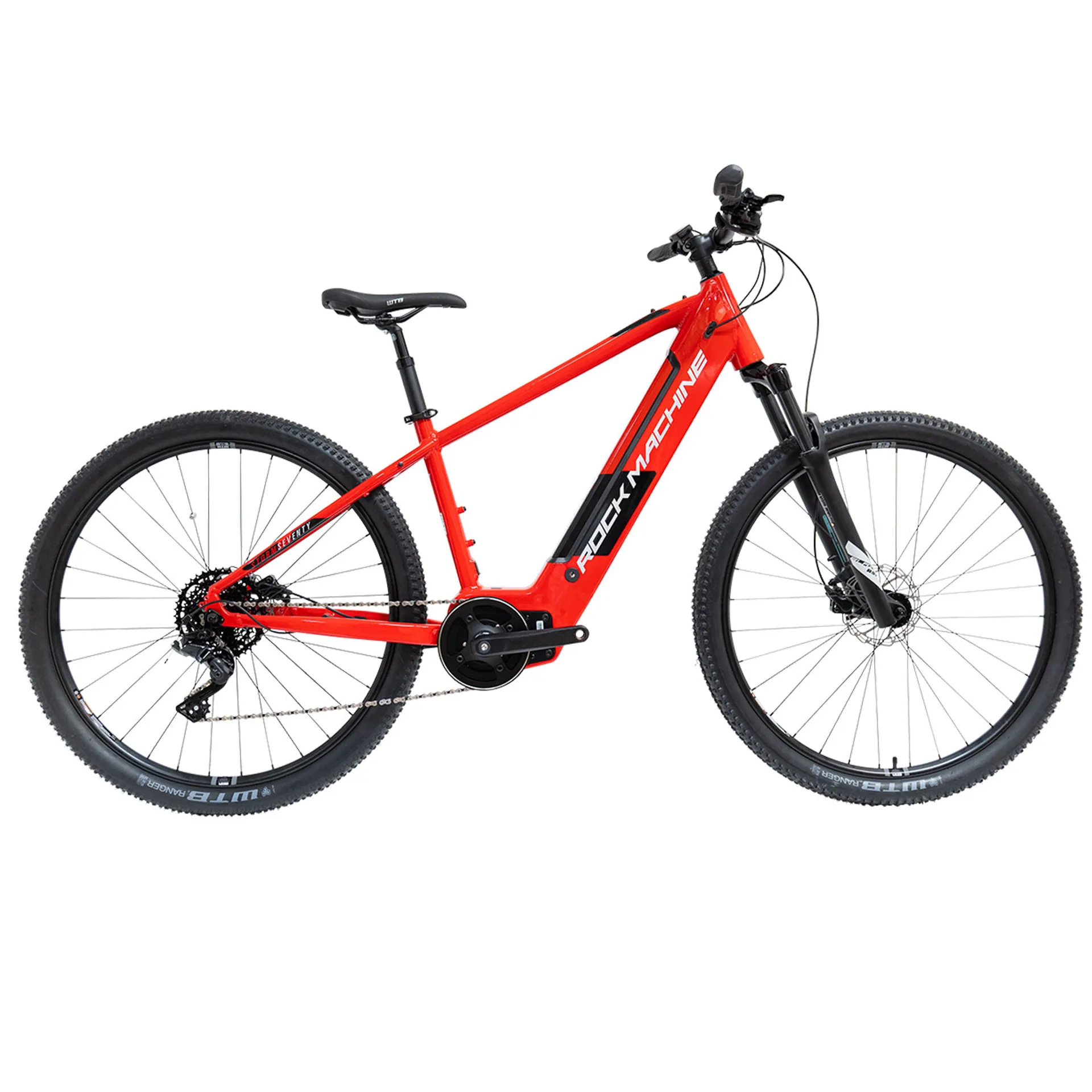

Storm INT e70-29 E- Bike Red

A state-of-the-art 29" e-bike with 90 Nm Sport Drive mid-motor and a fully integrated 500 Wh battery granting a range of up to 100 km. The new 'Fun Ride' geometry has been engineered to deliver an easier and more comfortable ride, both on and off roads. The bike features a lockable fork, 2.25" WTB tyres with a universal fast pattern, and Shimano hydraulic disc brakes. It also has the ability to mount a cargo rack, a safety lock, a kickstand or mudguards: All of these are the smart details that make the Storm a perfect bike in everyday commuting and weekend sports trips or touring.

• NEW frame with Fun Ride Geometry to increase Comfort & Control and to make uphills and downhills easier
• Sport Drive motor with 90 Nm, battery 500 Wh and range up to 100 km
• Shimano ALTUS 1x9 38 x 11-36
• ZOOM 595S AMS HLO, 1-1/8", Coil, QR Type, Lockout, 100 mm travel
• SHIMANO disc brakes
• WTB Nineline 29x2.25" tyres with Reflective Tape

Sport Drive MD250S

MD250s middle motor: fully integrated into the Sport drive frame, with truly exceptional parameters offers maximal power of 500 W, the efficiency of more than 80%. It is a clear choice for use in mountain e-bikes. You will appreciate not only the performance but also its exceptionally quiet operation. Even in the steepest terrain, it will help you in a very significant way.

• Drive Unit: MD250S
• Max. torque: 90 Nm
• Range: 100km (Average of combined use of all modes and favourable conditions)
• Assist modes: 1/2/3 + Walk

FRAMESET

• COLOUR:Gloss Red/Black/Silver

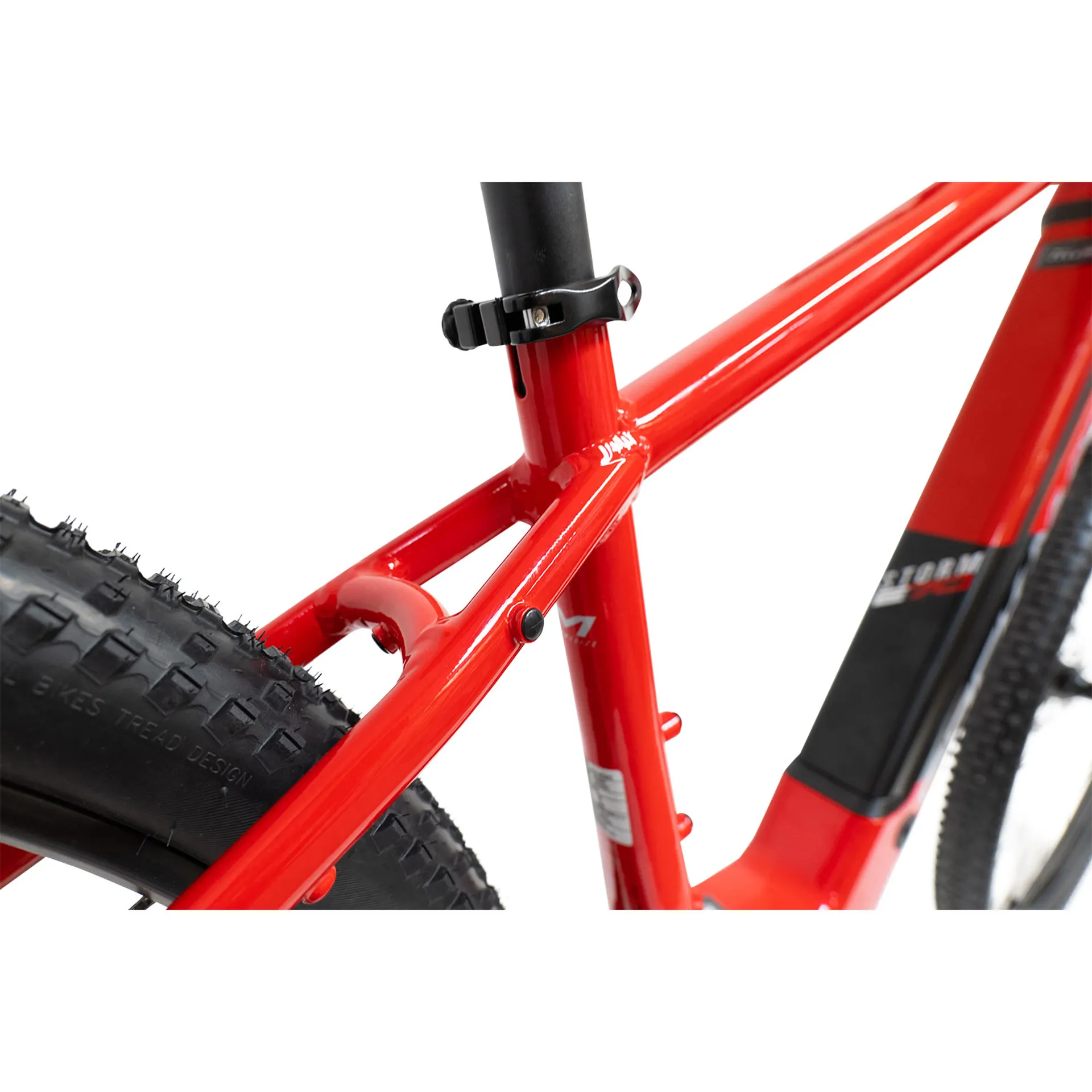

• FRAME:Alloy Al-6061 T6 Custom tubing, Smooth Welding, Fun Ride Geometry, Unisex 29er, Sport Drive MID Motor, 2nd Gen. Battery Integration, OLD 135x9, Disc Brake Post Mount, Fender & Kickstand Ready Dropout, Replaceable RD Hanger, Inner Cable Routing
• HEADSET:FSA No.10 Semi-Cartridge, 1-1/8"

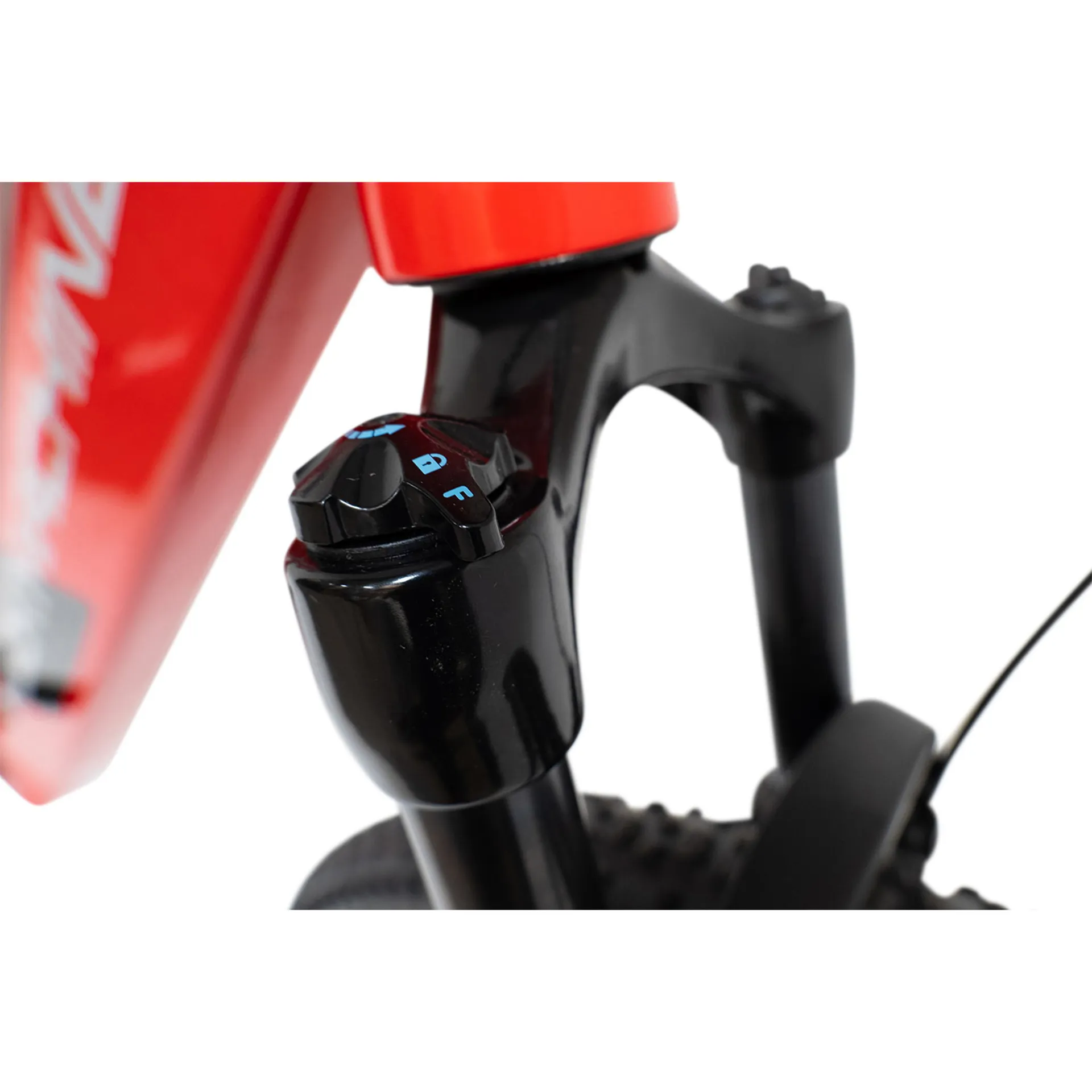

• FORK:RST Blaze, 1-1/8", Coil, QR Type, Lockout, 100mm travel
• SIZES:17.0"(M), 19.0"(L)

E-BIKE

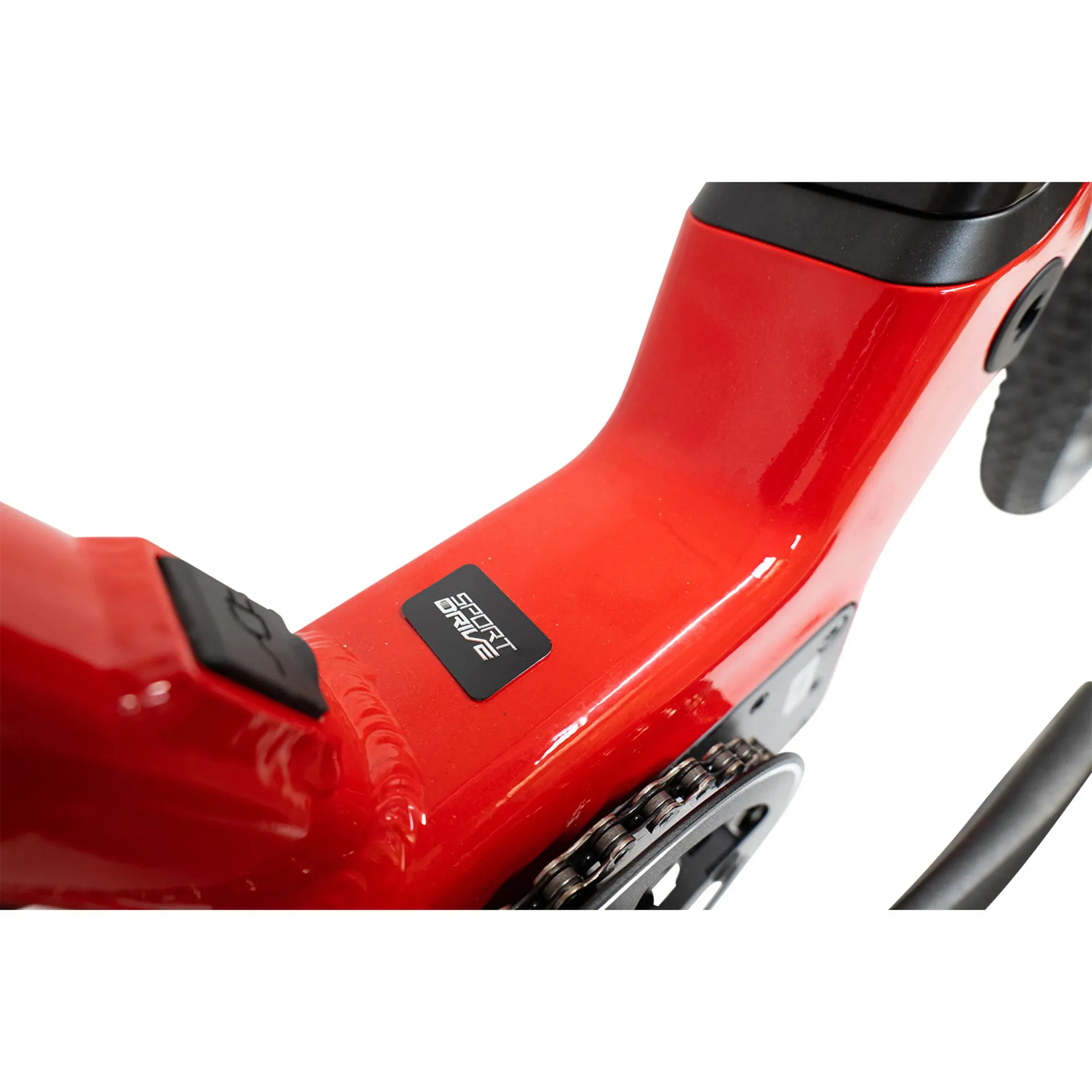

• E-BIKE SYSTEM:SPORT DRIVE - Middle Drive Unit
• DRIVE UNIT:SPORT DRIVE MD250S, 36V, 250W, 90Nm, torque/rotation sensor
• BATTERY:SPORT DRIVE, 36V, 500Wh, in-frame mount
• DISPLAY:SPORT DRIVE Grip display
• CHARGER:SPORT DRIVE standard charger, 36V/2A, charging time up to 7,5 hours
• MAX SUPPORT SPEED:25 km/h
• CHARGE CYCLES:** 1000/80% of original capacity
• DISTANCE RANGE:100 km (1st level of support)

DRIVETRAIN

• GEARS:Microshift Acolyte 1 x 8
• SHIFTER:Shimano Atlus SL-M2010-9R RapidFire Plus, 9-speed

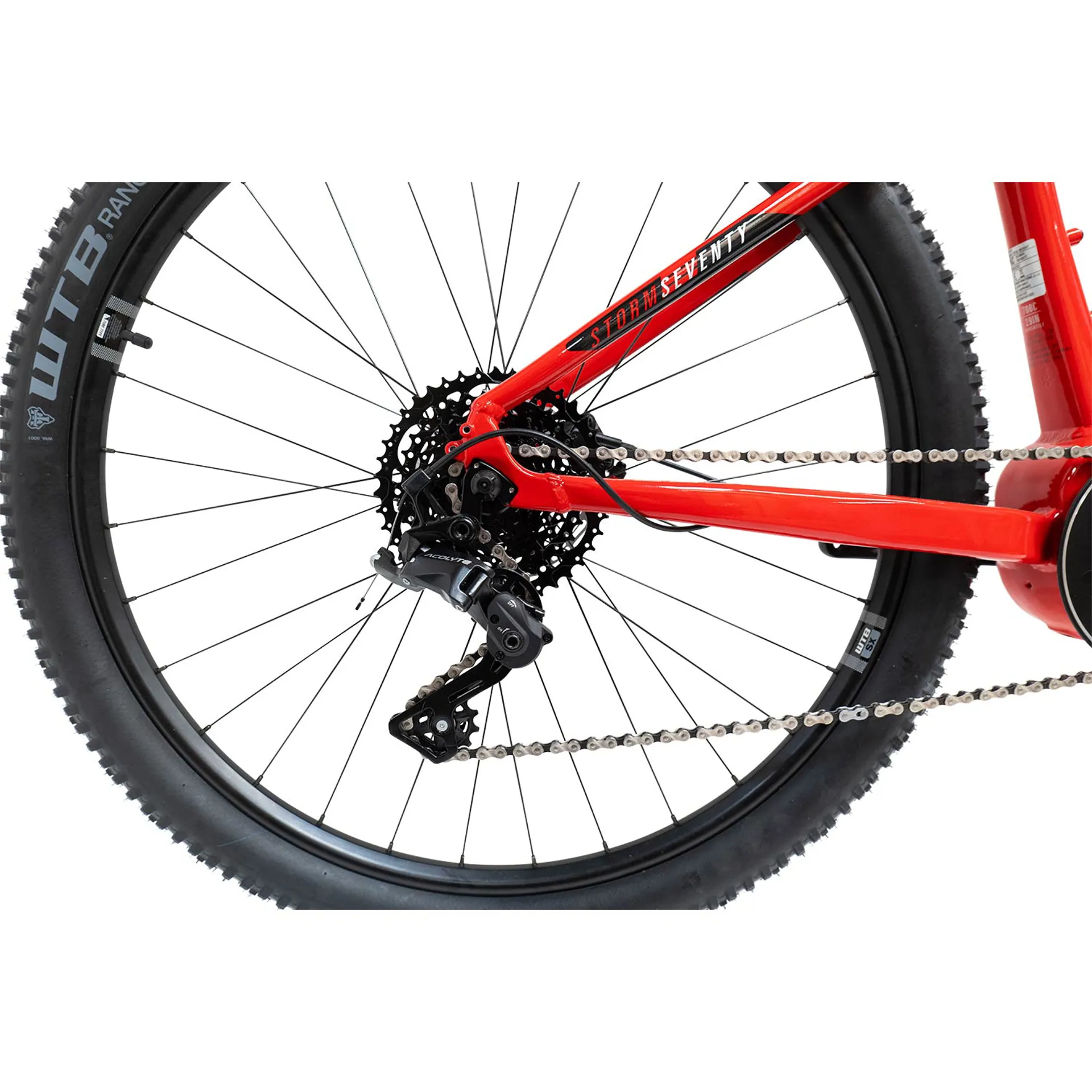

• REAR DERAILLEUR:Microshift Acolyte 1 x 8 with Clutch

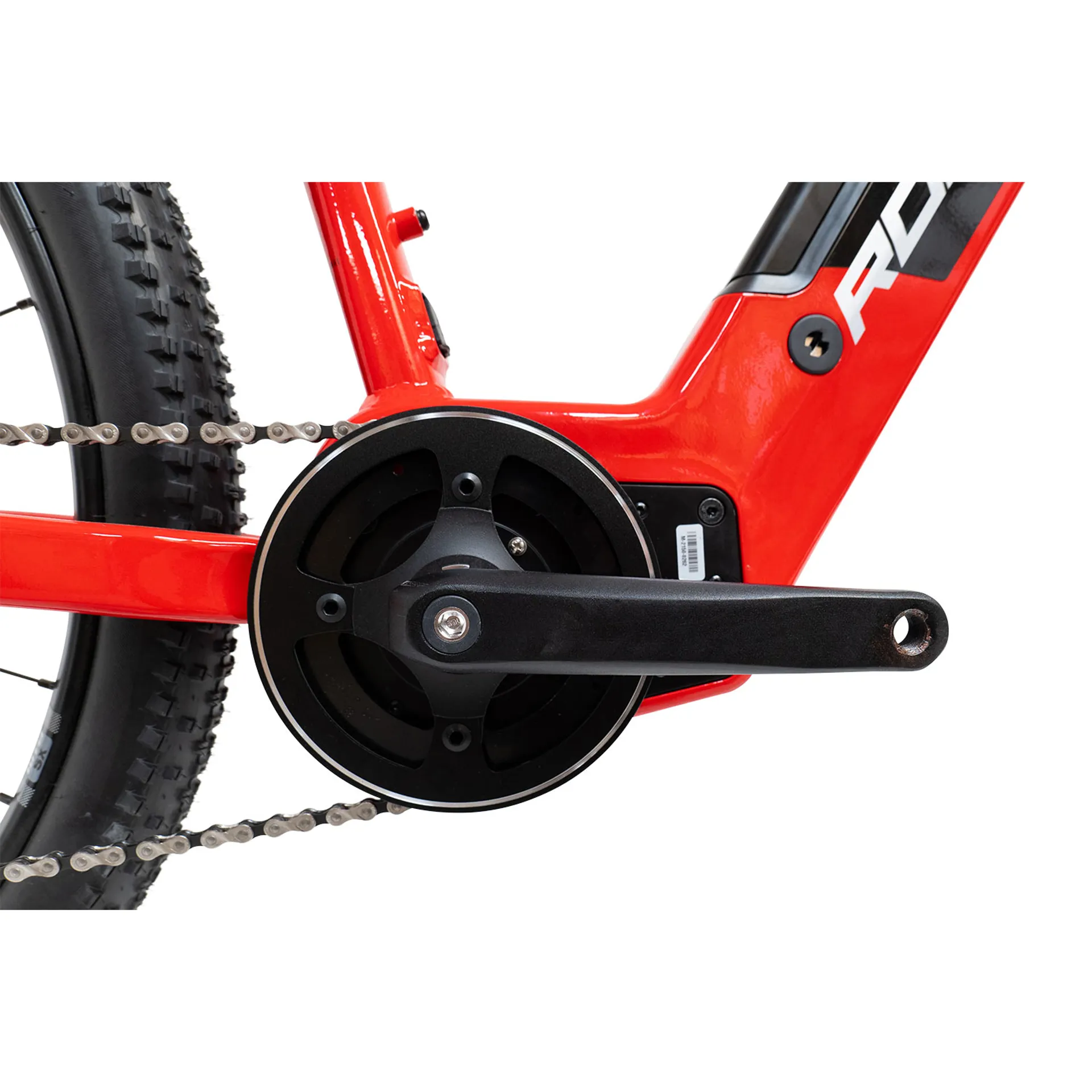

• CRANKSET:Wheel Top ED2L, 38T
• CASSETTE:Black Wide Range 8 Speed 12 � 42T
• CHAIN:KMC e9S
• PEDALS:Marwi SP-827 SANDBLOCK Non/slip pedal

COMPONENTS

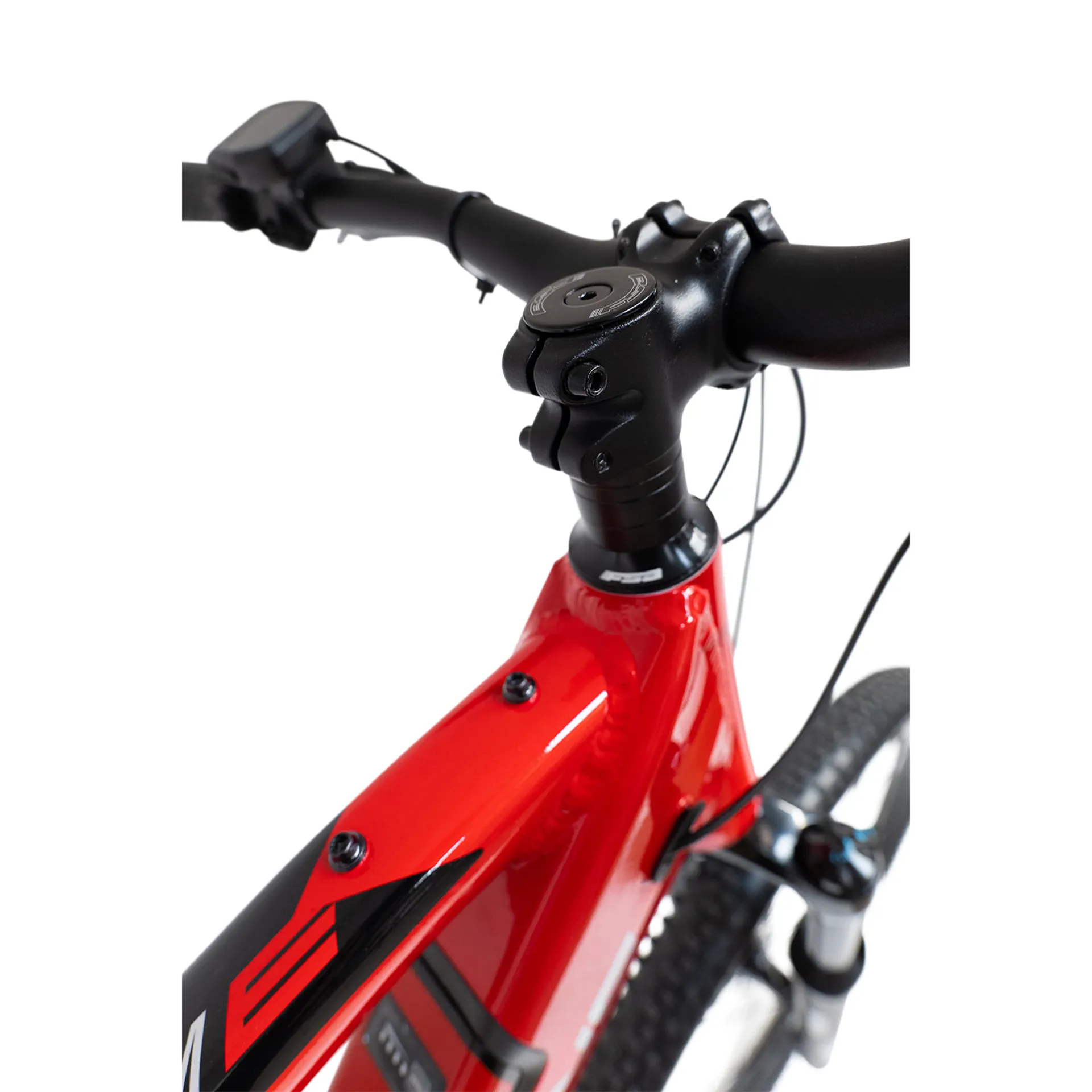

• HANDLEBARONE1 Alloy, MTB AL-325BT, 6deg upsweep, 9deg backsweep, 25mm rise, 720mm, 31.8mm
• STEM:ONE1 TDS-C342 Alloy, 31.8xE45mm, +3deg
• GRIPS:Velo VLG-1879D2, Ergo Grip
• BRAKES:Tektro hydraulic disc brake � 160/160 rotor
• SADDLE:WTB Volt Sport
• SEATPOST:ONE1 Alloy, SP C207, 30.9x350mm

WHEELS

• FRONT HUB:SHIMANO TX HB-TX505, 32H, CENTER LOCK, QR Type
• REAR HUB:SHIMANO TX FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
• RIMS:WTB SX19, 32H
• TYRES:WTB Ranger 29 x 2.25
• SPOKES:Sapim Galvanized Black

WEIGHT

• 23.2 Kg (M size)

Please Note: Bike Specification May Be Subject To Change Without Notice
