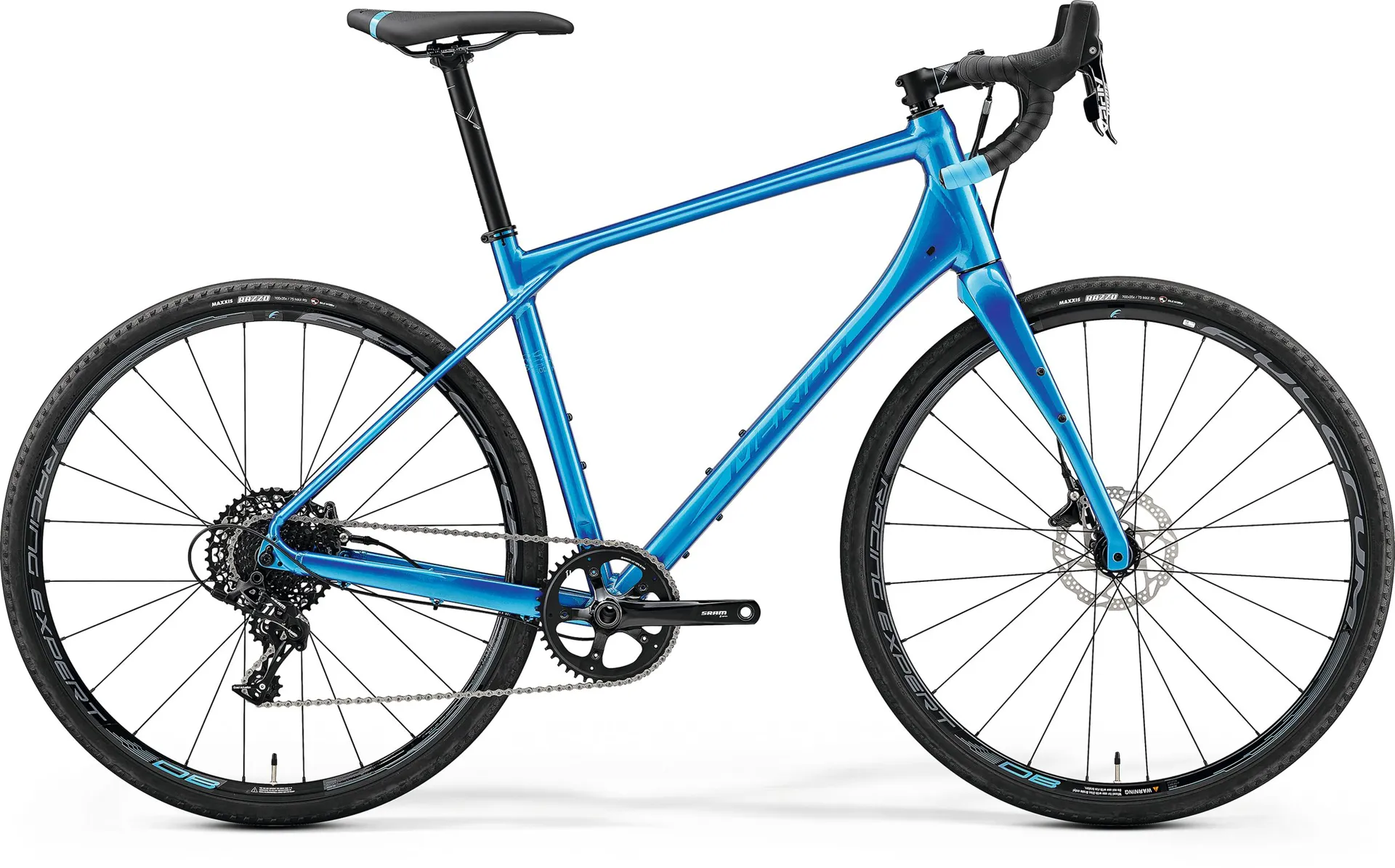

Merida Silex 600 2018 Blue/Blue M 50cm

Season:2018

Brand:Merida

Code:H410

Lightweight 6066 triple butted and hydroformed aluminium frame with upright gravel geometry for stable but nimble handling. Featuring internal cable routing and BB86 bottom bracket.

In line with the design ethos of versatility and go anywhere, the SILEX is available with a wide range of luggage and accessory options including frame bags and big saddle bags.

The majority of SILEX models are fitted with 1x drivetrains for simplicity, resulting in weight reduction and fewer moving parts. A 1x can deliver 98 % of the gear range of a 50-34 compact chainset with an 11-32 road set up.

Featuring 12 mm bolt through axles for maximum frame stiffness, making wheel alignment much easier when refitting. The flat mount rear brake is mounted on the chainstay for better dissipation of braking forces and protecting it from damage in the rear triangle. Disc cooler technology draws heat away through CNC-milled cooling fins, particularly important when you are fully loaded.

As standard, the SILEX comes with 700x35C tyres but can accommodate up to 700x42C (road profile). It's even possible to use 650B wheels and go up to 50 mm wide road profile tyres on the carbon and up to 42 mm on the aluminium bikes.

To put the SILEX on the perfect tyre, we have collaborated with Maxxis to create the ideal 35c semi-slick tyre with side knobs for our all road bike. The tyre, which featuring Maxxis Silkworm technology and puncture protection, can be inflated to high pressure for fast road riding, or slightly deflated to benefit from the added traction provided by the side knobs on rougher surfaces.

Lightweight carbon or sophisticated aluminium frame options. Key differences, other than construction materials, are that the carbon frame has a lower weight and is equipped with an integrated seat-post clamp to minimise turbulence at the top tube.



Technical Information
FRAME SILEX LITE
FORK MERIDA SILEX CF2
  • 100x12mm width front hub
  • 142x12mm width rear hub
  • 19mm inner width
  • 22mm height
  • Centerlock
HUBS MERIDA QR48 12-142
TYRES Maxxis Razzo
SHIFTERS no / Sram Apex 1 HRD
REAR DERAILLEUR Sram Apex1
  • 11-42 teeth
  • 11 speed
BRAKE LEVER Sram Apex 1 disc
BRAKES Sram Apex1 HRD
ROTORS Shimano RT54
BOTTOM BRACKET Sram Pressfit PF86
CHAIN KMC X11-1
HEADSET MERIDA M2331
HANDLEBAR MERIDA Expert GR
  • 31.8mm diameter
  • -5° stem angle
SADDLE MERIDA Comp CC
  • 30.9mm diameter
  • 0mm setback
SEAT CLAMP MERIDA Expert
GRIP MERIDA Road Expert





Sizing Information
Bike Frame Geometry Image
FRAME SIZE XS S M L XL
TYRE SIZES 28" 28" 28" 28" 28"
FRAME SIZE CM 44 47 50 53 56
ST SEAT TUBES MM 440 470 500 530 560
TT TOP TUBES MM 548 554 579 600 620
CS CHAIN STAYS MM 430 430 430 430 430
HTA HEAD TUBE ANGLE [°] 71 71 71 71 71
STA SEAT TUBE ANGLE [°] 74 74 74 74 74
BD BOTTOM BRACKET DROPS MM 75 75 75 75 75
HT HEAD TUBE LENGTHS MM 160 180 200 220 240
FL FORK LENGTHS MM 397 397 397 397 397
R REACH MM 380 380 400 415 430
S STACKS MM 587 606 625 644 663
WB WHEEL BASE MM 1027 1034 1060 1082 1103
SH STAND OVER HEIGHT MM 715 742 770 797 825
HEIGHT IN CM < 167 165 - 177 173 - 185 181 - 192 > 188
