Experience the perfect blend of comfort and control with the BIG.NINE 20 SE.
Experience the perfect blend of comfort and control with the BIG.NINE 20 SE.
Merida

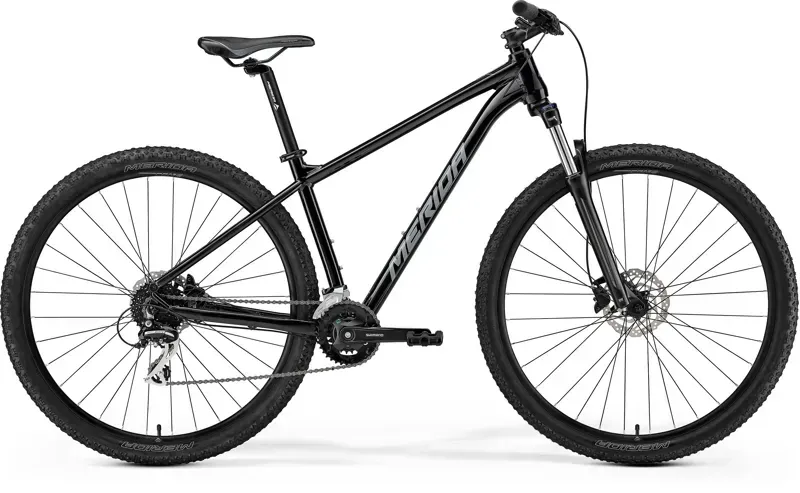

Merida Big Nine 20 SE Mountain Bike In Glossy Black/Grey

£700.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Merida Big Nine 20 SE Mountain Bike In Glossy Black/Grey

Season:2025

Brand:Merida

Code:P-Q425

Experience the perfect blend of comfort and control with the BIG.NINE 20 SE.

With a choice of 16 gears offered by the dual chainring setup, the BIG.NINE 20 SE not only offers a more comfortable riding position than its more race-oriented cousins, but also plenty of control, thanks to the 100 mm SR Suntour suspension fork and powerful Shimano hydraulic disc brakes. The proven 29er wheels, renowned for their ability to roll over obstacles smoothly, cover the ground quickly and provide a plush ride.

Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.

Features:

  • Double butted aluminium frame with 29er wheels.
  • Less aggressive and more upright geometry for maximum control and comfort.
  • SR Suntour 100 mm travel suspension fork with lockout.
  • Shimano 8-speed drivetrain with double chainring setup.
  • Shimano hydraulic disc brakes.
  • Internal cable routing.
Technical Information
  • Frame
    TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29 x 2.25.
  • Fork
    SR Suntour XCT30; Coil; 100mm travel; Max tyre size 29 x 2.25.
  • Headset
    Merida M2345.
  • Stem
    Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL).
  • Handlebar
    Merida CC; aluminium; 690mm wide; 15mm rise.
  • Grip
    Merida EC.
  • Brake Type
    Hydraulic disc.
  • Brake Lever
    Shimano EF505.
  • Brake Calipers
    Front: Shimano ST-EF505; hydraulic disc brake caliper with Shimano RT10; 160mm rotor. Rear: Shimano ST-EF505; hydraulic disc brake caliper with Shimano RT10; 160mm rotor.
  • Tyres
    Front: Merida K1080; 29 x 2.2; wire bead. Rear: Merida K1080; 29 x 2.2; wire bead.
  • Wheel Size
    29.
  • Wheels
    Rims: Merida CC; 17mm inner rim width; aluminium. Spokes: Black steel. Front Hub: Shimano TX505; 100 x 9mm; 32 spoke; Centerlock. Rear Hub: Shimano TX505; 135 x 9mm; 32 spoke; Centerlock.
  • Speeds
    16.
  • Front Derailleur
    Shimano FD-M315-TS.
  • Rear Derailleur
    Shimano RD-M302-8; SGS.
  • Shift Levers
    Shimano FH-TY505.
  • Chain
    KMC Z8.3.
  • Cassette
    Sunrace CSM558AU; 11-32 teeth; 8 speed.
  • Chainset
    Shimano FC-M315-2; 36-22 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up).
  • Bottom Bracket
    FSA TH-7420ST, 68-124.
  • Pedals
    VP VPE-891.
  • Saddle
    Merida Sport comfort.
  • Seat Post
    Merida CC; 30.9mm diameter; 15 mm layback; Aluminium.
