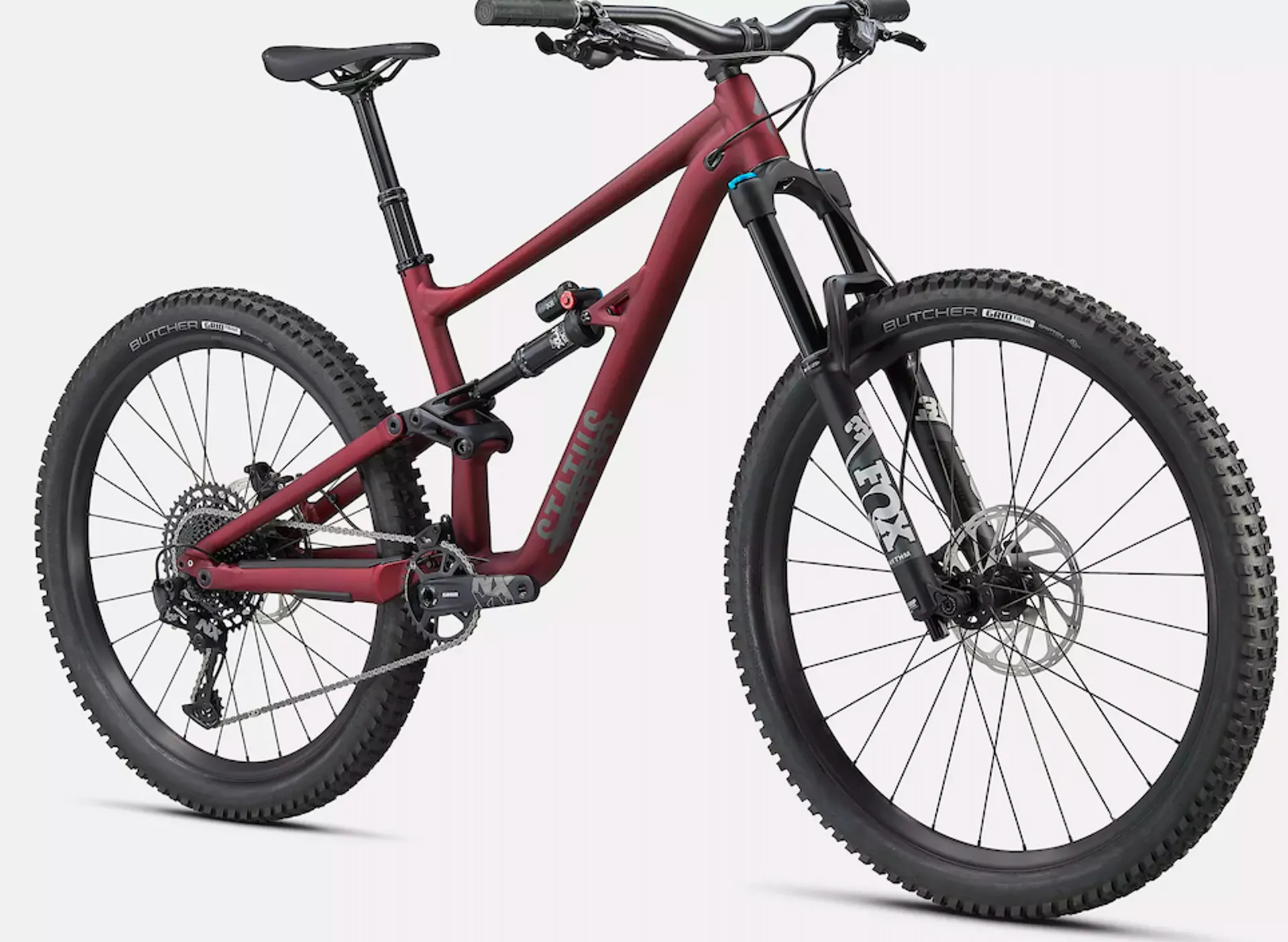

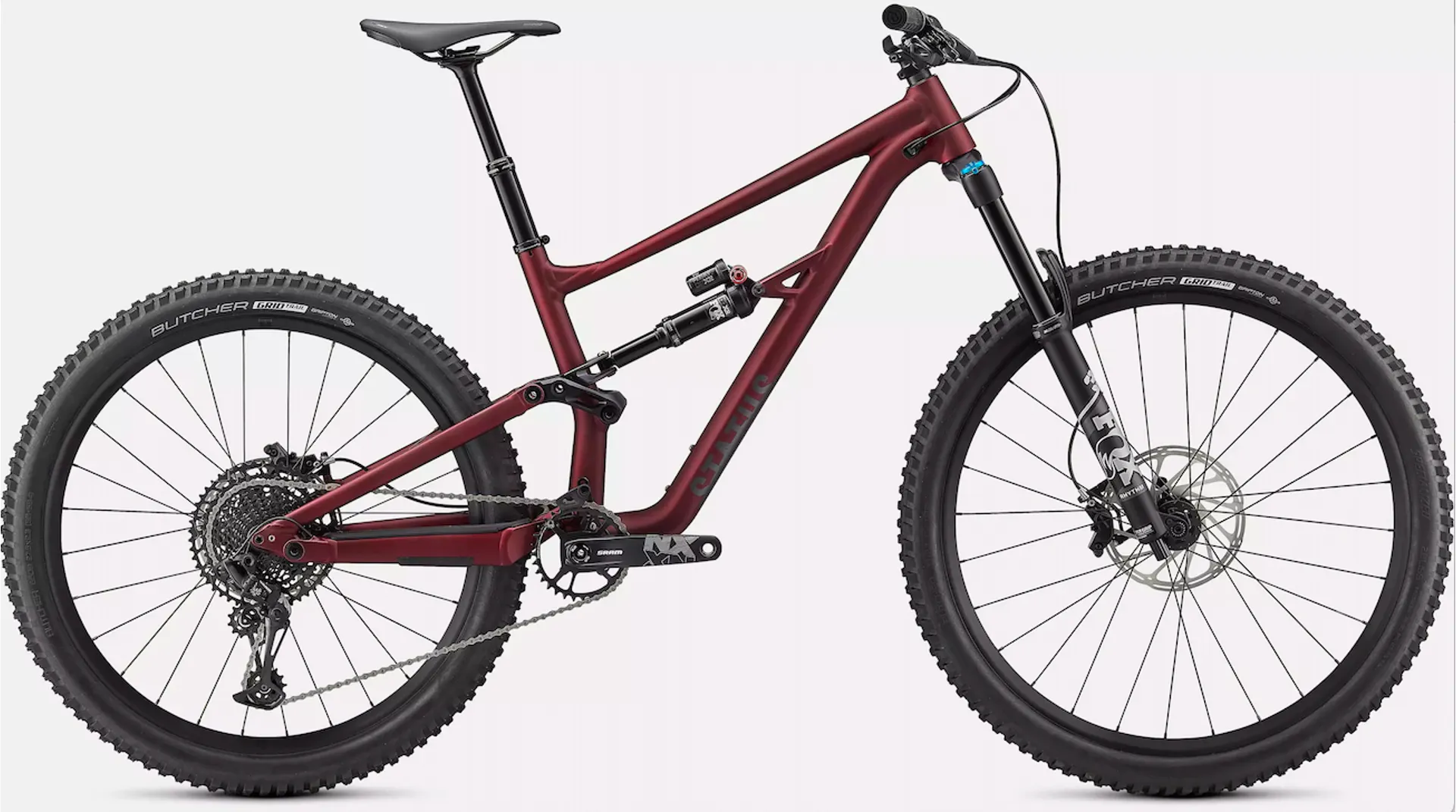

Specialized STATUS 160 MRN/CHAR S4

Season:2021

Brand:Specialized

Code:93720-5304

We rounded out the Status 160’s fun-first frame with everything you need to keep the party going—big brakes, an X-Fusion Manic dropper post and Fox’s FLOAT 36 Rhthym fork paired with a DPX2 Performance shock, all brought together by the active, planted feel of our FSR suspension platform.

  • Focused on fun and featuring our Mixed-wheel Trail Geometry, the Status frameset is a fewer frills, all thrills FSR delivery system crafted from our hard-charging—and hard-wearing—M5 alloy and is designed not only to take a hit, but keep asking for more.
  • Fox’s FLOAT 36 Rhythm fork calls their venerable Grip damper into service in the name of adventurous riders everywhere, offering impressively controlled travel with plenty of trail-feel that puts confidence on speed dial. The two-position Sweep adjustment ensures the FLOAT 36 Rhythm is right at home dealing out its 160-millimeters of travel in just about any environment while 36-millimeter stanchions promise plenty of stiffness for precise handling at the limit.
  • Quality suspension unlocks some serious free speed, so to slow it all down, we tasked SRAM’s proven Code R brakes with stopping duties. Forged four-piston calipers offer serious stopping power, while 200 millimeter rotors on both ends of the bike promise plenty of fade-free bite when it matters.
Technical Information

FRAMESET

Frame

M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel

Seat Binder

Specialized bolt-type, alloy, 38.6mm

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm

Grips

Deity, Knuckleduster, Black

SeatPost

SEAT POST, A-PRO, MANIC, 22-XPMCMLG-125/150/170-011,FORGED,6066-T6 ,2-BOLT,34.9, 125/150/170 TRAVEL, OFFSET 0MM,361.5/425.5/470.5MM,SCM435,ZINC FINISH BOLT

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

WHEELS

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Tire

Butcher, GRID TRAIL casing, GRIPTON® compound, 27.5x2.3"

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"

Spokes

DT Swiss Industry

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta Valve

Suspension

Fork

FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel

Rear Shock

FOX FLOAT DPX2 Performance, Rx Trail Tune, EVOL Air sleeve, 3-position adjustment, 230x60mm

DRIVETRAIN

Chainrings

48/35T

Bottom Bracket

SRAM DUB, BSA 73mm, threaded

Cassette

SRAM NX Eagle PG-1230, 12-speed, 11-50t

Rear Derailleur

SRAM NX Eagle, 12-speed

Chain

SRAM NX Eagle, 12-speed

Crankset

SRAM NX Eagle, DUB, 170mm

Shift Levers

SRAM NX Eagle, trigger, 12-speed

BRAKES

Rear Brake

SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

Front Brake

SRAM Code R, 4-piston caliper, hydraulic disc, 220mm

*Specifications are subject to change without notice
