With a redesigned rim profile, the new arc offset rims utilize an asymmetrical design to optimize spoke tension balance, wheel durability and wheel stiffness.
With a redesigned rim profile, the new arc offset rims utilize an asymmetrical design to optimize spoke tension balance, wheel durability and wheel stiffness.
Race Face

Race Face Arc Offset Rim

£99.95 £109.95 9% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

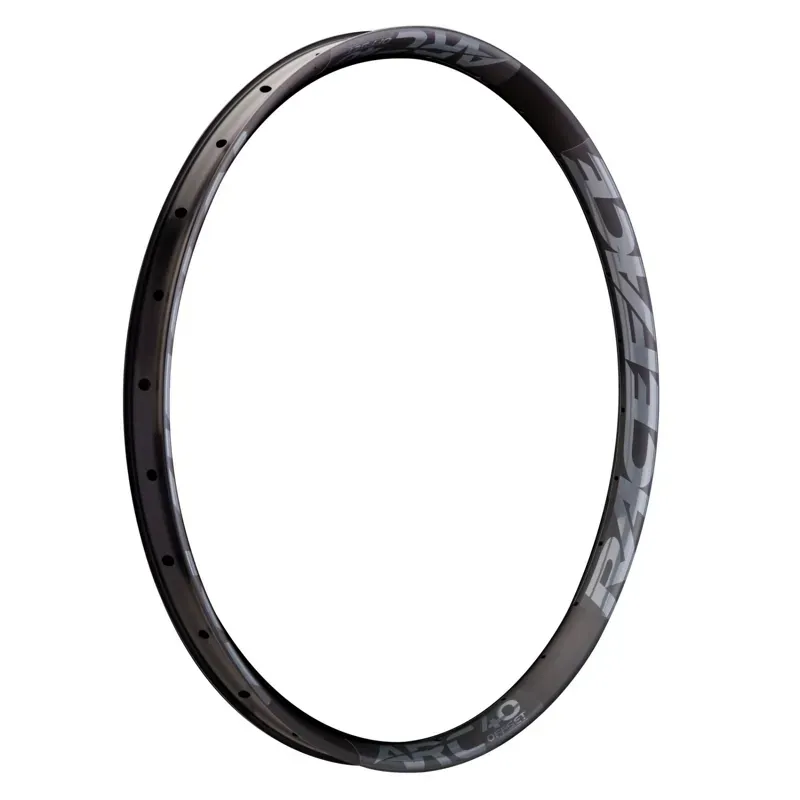

Race Face Arc Offset Rim

Brand:Race Face

Code:KLBH825-7252SOCRA91MRO-RA

With a redesigned rim profile, the new arc offset rims utilize an asymmetrical design to optimize spoke tension balance, wheel durability and wheel stiffness. New 6069 alloy provides a superior strength to weight ratio over Race Face's previous generation of arc, significantly improving toughness.

And now with the new 30mm wide heavy duty rim at 22mm deep, Race Face have a rim size and width option for every tyre and every riding style. Their tubeless ready bead and offest design mean these rims are ready to hit any trail with confidence.

Features:

  • Tubeless ready, strong tyre retention bead.
  • Sizes from 25mm to 40mm internal width.

Technical Information
27.5"29"
Rim weight25mm - 418g, 30mm - 484g, 35mm - 520g, 40mm - 560g25mm - 445g, 30mm - 525g, 35mm - 553g, 40mm - 596g
Finishbrushed black anodise / vinyl decalsbrushed black anodise / vinyl decals
Typetubeless ready clincher (tape and valve kit sold seperately)tubeless ready clincher (tape and valve kit sold seperately)
Rim material6069 high strength alloy6069 high strength alloy
Rim depth20mm20mm
Rim offset4.5mm4.5mm
Internal rim width25mm, 27mm, 30mm, 35mm, 40mm25mm, 27mm, 30mm, 35mm, 40mm
External rim width29mm, 31mm, 34mm, 39mm, 44mm29mm, 31mm, 34mm, 39mm, 44mm
Spoke holes28 or 32 hole28 or 32 hole
Rim erd562mm (25-40mm)600mm (25-40mm)
Max spoke tension122kgf / 1200n122kgf / 1200n
