Superior Bikes

Superior XC 859 Grey/Orange

£799.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

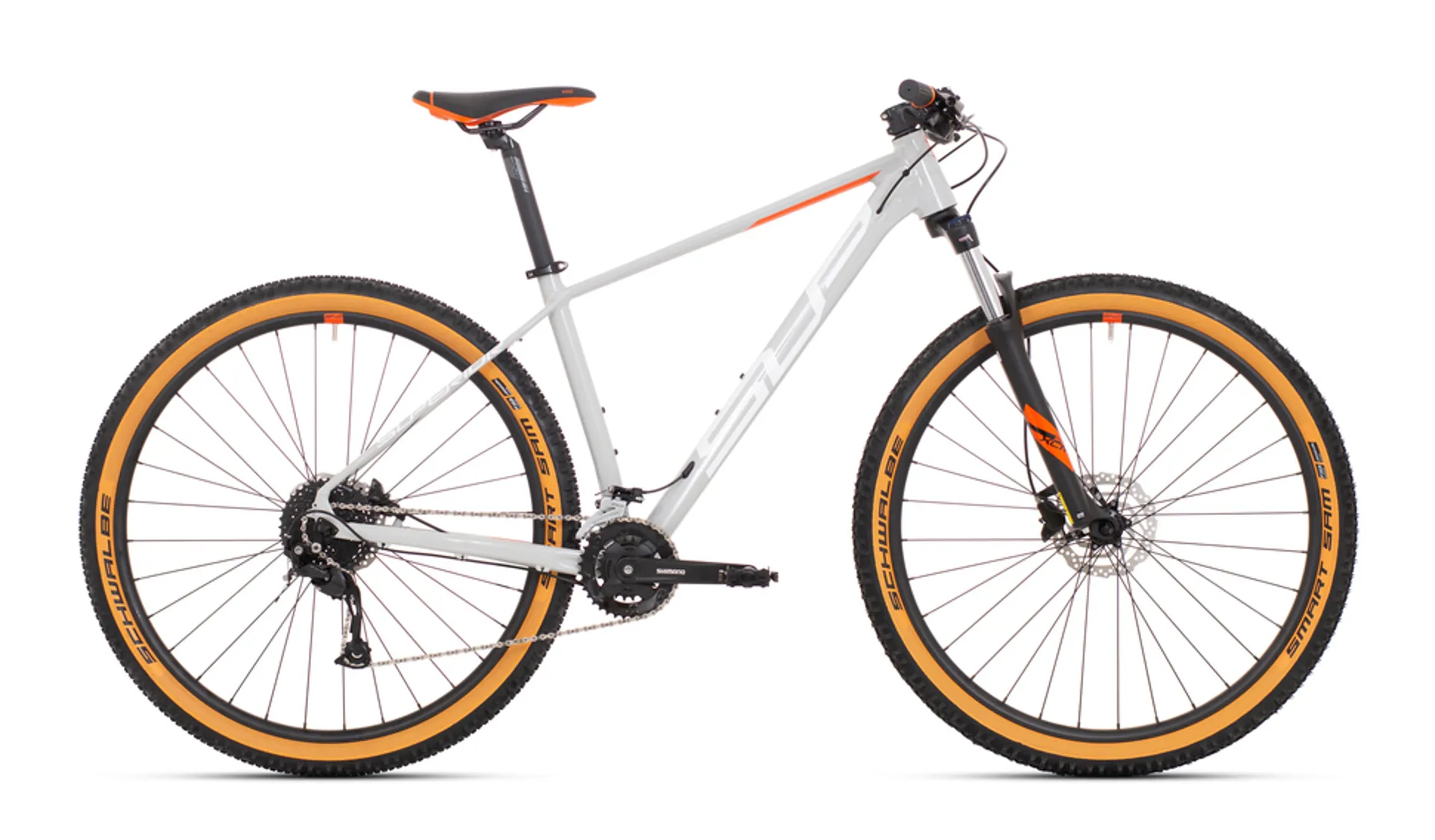

Superior XC 859 Grey/Orange

Season:2022

Brand:Superior Bikes

Code:SP320G

A comfortable bike for all-day touring off paved roads. The Suntour hydraulic lockout fork reliably dampens the effects of rugged terrain, and the Shimano hydraulic disc brakes remain strong, dry or wet. The 2x9 gear setup will allow you to climb hills that you never dared to explore. The universal, puncture-proof tyres carry the bike safely on terrain while not slowing rides on the tarmac. The simple design typical of our racing bikes will make you feel special. The XC 859 allows you to mount a cargo rack, kickstand, and mudguards.

  • Double-butted alumimium frame with comfortable sports geometry and internal cable routing
  • Suntour hydraulic lockout coil fork
  • Universal pattern Schwalbe tyres
  • Shimano 2x9 drivetrain for easy control
  • High-performance, gradual pressure Shimano brakes
  • Cargo rack, kickstand, and mudguards optional
Technical Information

FRAMESET

  • FRAME:Alu 6061 T6 Double Butted, Smooth Welding, Sport Geometry, Conical Head Tube, BB BSA 73 mm, IDK dropout, Smoot Welding, Inner cable routing
  • HEAD SET:FSA Orbit 1.5B No.57B, Zero Stack, 1-1/8"
  • FORK:SR Suntour XCM HLO, 1-1/8", Coil, QR Type, Hydraulic Lockout, 100mm travel
  • COLOUR:GLOSS GREY/ORANGE
  • SIZES:16.0" (S), 18.0" (M), 20" (L), 22" (XL)

DRIVETRAIN

  • GEARS:2x9
  • SHIFTER:SHIMANO ALIVIO SL-M3100-2L RapidFire Plus, 2-speed, SHIMANO ALIVIO SL-M3100-R RapidFire Plus,9-speed
  • FRONT DERAILLEUR:SHIMANO FD-M3120-M, SIDE SWING, FRONT-PULL
  • REAR DERAILLEUR:SHIMANO ALIVIO RD-M3100 Shadow
  • CRANKSET:SHIMANO FC-MT101, 36-22T
  • CASSETTE:SHIMANO CS-HG200-9, 11-36T
  • BOTTOM BRACKET:SHIMANO BB-UN101 122.5mm, BSA, shell 73mm
  • CHAIN:KMC X9
  • PEDALS:Marwi SP-610

COMPONENTS

  • HANDLEBAR:ONE1 Alloy, MTB AL-312BT, 9deg backsweep, 12mm rise, 740mm, 31.8mm
  • STEM:ONE1 Sport MAS-D61248 Alloy, 31.8mm, -8deg
  • GRIPS:ONE1 VLG-1661D2N, Lock-On
  • BRAKES:SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
  • SADDLE:Selle Royal Vivo HRN
  • SEAT POST:ONE1 Sport Alloy, SP C255, 30.9mm

WHEELS

  • FRONT HUB:SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
  • REAR HUB:SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
  • RIMS:Stars J25DH, 32H
  • TYRES:Schwalbe Smart Sam 29x2.10"
  • SPOKES:Sapim Galvanized Black

WEIGHT

  • 15 kg
Sizing Information
FRAME SIZE16.0" (S)18.0" (M)20" (L)22" (XL)
WHEEL SIZE29292929
ASEAT TUBE LENGTH (MM)406457508559
CSEAT TUBE ANGLE (DEGREE)72.4727272.4
BEFFECTIVE TOP TUBE LENGTH (MM)570590610630
RREACH (MM)372387407421
SSTACKHEIGHT (MM)620639639657
GHEAD TUBE LENGTH (MM)100120120140
DHEAD TUBE ANGLE (DEGREE)70707070
ECHAINSTAY LENGTH (MM)445445445445
BBDBB DROP (MM)60606060
FWHEELBASE (MM)1066108711071128
HANDLEBAR WIDTH (MM)720720740740
STEM LENGTH (MM)70709090
CRANK LENGTH (MM)170175175175
SEAT POST LENGTH (MM)350350350350
